It's cool, it's fun, it's joy of riding... It's still your bike
Cycling will be redefined with your own DIY ebikes.
It creates incredible experiences for riders.

For short trips, the efficiency and convenience of electric bikes is hard to beat. Here are some statistics: 40% of all trips are made within two miles of the home, and 50% of workers commute five miles or less to work. Now with GoldenMotor kits, you can easily convert your bike or trike into electric version.

BUY NOW to get FREE UPGRADE to Cruise Speed Controller!
+ Free Extra Throttle (You get both Thumb and Twist Throttle)

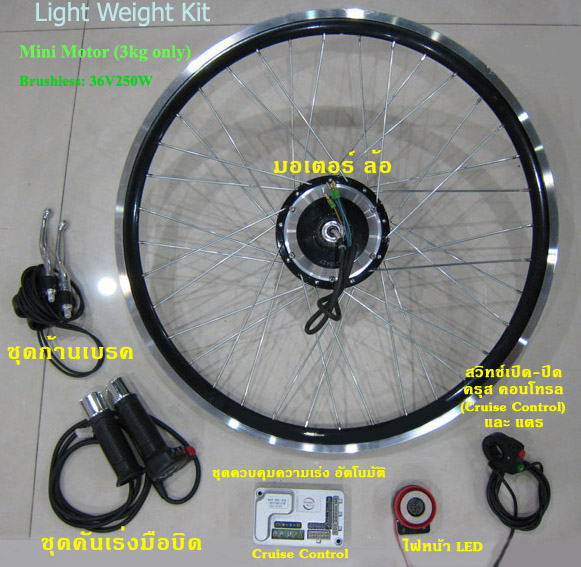

e-Bike Conversion Kit:

• The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness

• Travel ranges: 38 km/36V12AH or 50km/36V16AH battery pack

• Speed: 0-45kpm; Hub Width: 85mm front or 128mm rear hub motor

• Double wall rim special for e-bike

• Motor Specifications: 36Vdc/500W/320rpm or 48V/1000W/430rpm

• Quiet and Reliable Brushless Motor

• Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg

• Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg


Product Characteristics:

• Non-toxic, non-contaminating
• Compact in size and light in weight
• For all high power output applications
• Can be used under extreme temperature
• Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
• Extremely safe: no explosion, no fire under collision, over charged or short circuit

Lithium Iron Battery Pack with BMS/Charger and Optional Sliding Rack

Aluminium Casing with Switch/Key
BMS and 110V-240Vac 2A Universal Charger Included (optional 4A)
Weight: below 5.5Kgs
Capacities: 24V/16AH, 36V/12AH, 36V/16AH, or 48V/12AH
Max Discharge Current: 35A(12AH)/60A(16AH)
Max Continuous Discharge Current: 20A(12AH)/30A(16AH)
Charging Cycles: >800 times
Ranges(full electric mode): 38Km(36V12AH) or 50Km(36V16AH, 48V12AH)

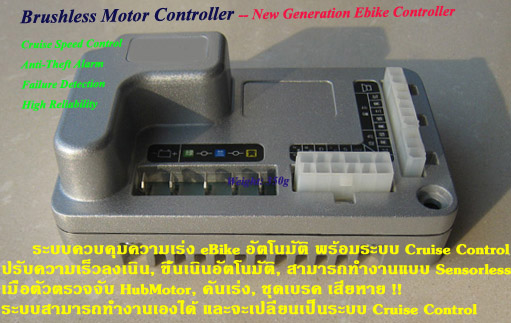

Cruise Speed Controller -- Technology Breaking Through!
Magic! ... It can drive your ebike even with failed motor hall sensors, throttle, breaker, or all of them failed together!
It acts as sensorless controller when your motor hall effect sensors fail!

Special Features:

• Cruise Speed Control
• Motor hall sensor failure redundency (Automatically switch to sensorless control)
• Anti-theft alarm and wheel-locking by detection of vibration
• True regenerative braking (only effective when you squeeze the hand brake)
• Other failures redundency (Work with failed throttle and power breaker)
• You can force it to work with lower voltages (e.g 48V to 36V, 36V to 24V)
• Report failure components by beeps
• Motor phase self detection and calibration
• Support Forward and Reverse Control
• Support PAS (pedelec for EU regulations)
• Excessive Current Protection
• Low Voltage Protection (no limit to upside voltage)
• High Reliability
• Available for 24V,36V and 48V brushless motors

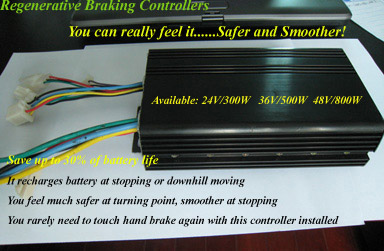

Regenerative Braking Controllers

Special Features:

• Regenerative braking
• Over-heat protection
• Over-current protection
• Support forward and reverse
• Motor phases auto-detection and self calibration (Instructions)
• Enable and disable regenerative braking feature by a switch
• Programmable for cut-off current, cut-off low voltage, accelerating/decelerating rate
• Dimensions: 155 x 95 x 45mm

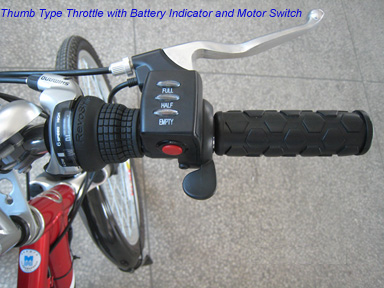

Integrated Thumb Throttle With Battery Gauge

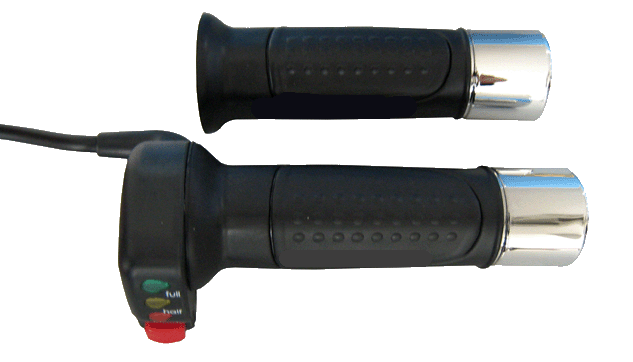

Integrated Twist Throttle With Battery Gauge

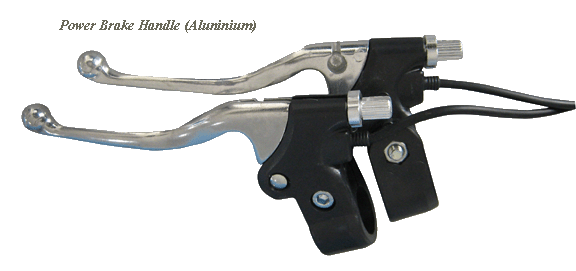

Power Brake Handles

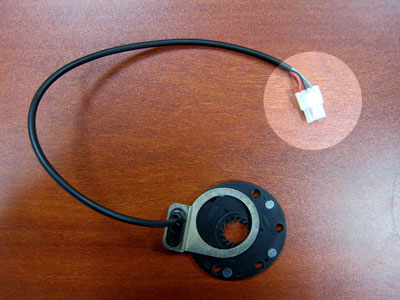

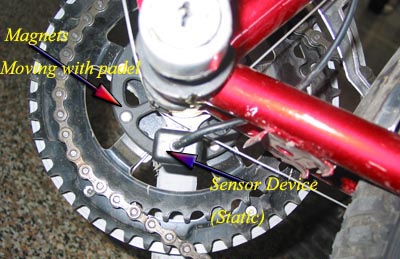

Pedelec Device (PAS)
